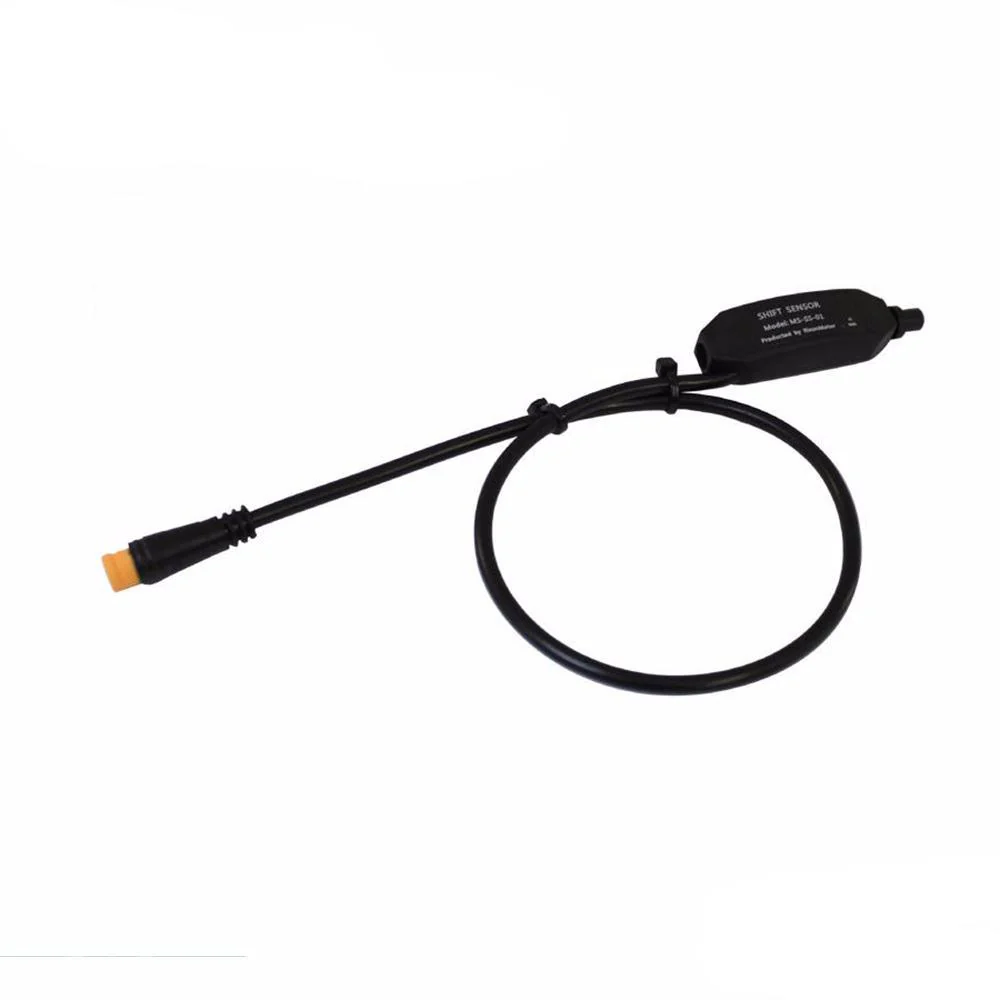

Bafang Mid Drive Gear Sensor
The Gear Shift sensor is used for the bafang mid Drive Motor device and will momentarily cut motor power while shifting.
Products Details
Operating voltage: 4-5.5 VDC
Current consumption: 15ma
Signal Output: Pulse duration 0.5s
Protection circuitz: Short Circuit & Polarity Reversed Protection
Housing material: Intensive ABS
Protection: IP67
Operating temp/hum/: -2 5 ~ +70 ; 35% 85 % RH
Size(L*W*H): 47mm * 18mm * 12mm
Certifications: CE/ROHS
Y Split Wire Is NOT INCLUDED
$8.75
Original: $25.00
-65%Bafang Mid Drive Gear Sensor—
$25.00
$8.75Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Gear Shift sensor is used for the bafang mid Drive Motor device and will momentarily cut motor power while shifting.
Products Details
Operating voltage: 4-5.5 VDC
Current consumption: 15ma
Signal Output: Pulse duration 0.5s
Protection circuitz: Short Circuit & Polarity Reversed Protection
Housing material: Intensive ABS
Protection: IP67
Operating temp/hum/: -2 5 ~ +70 ; 35% 85 % RH
Size(L*W*H): 47mm * 18mm * 12mm
Certifications: CE/ROHS
Y Split Wire Is NOT INCLUDED
